Minerva LX

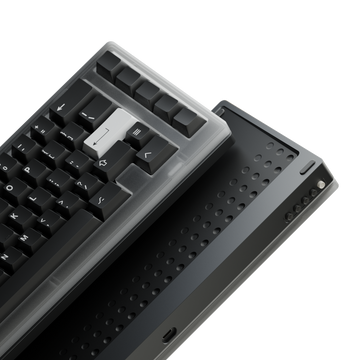

Minerva is a 60% full isolation sleeve-gasket keyboard featuring a minimal design language, 5 row macro column and hidden screw assembly.
Shipping cost is calculated in your cart. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.

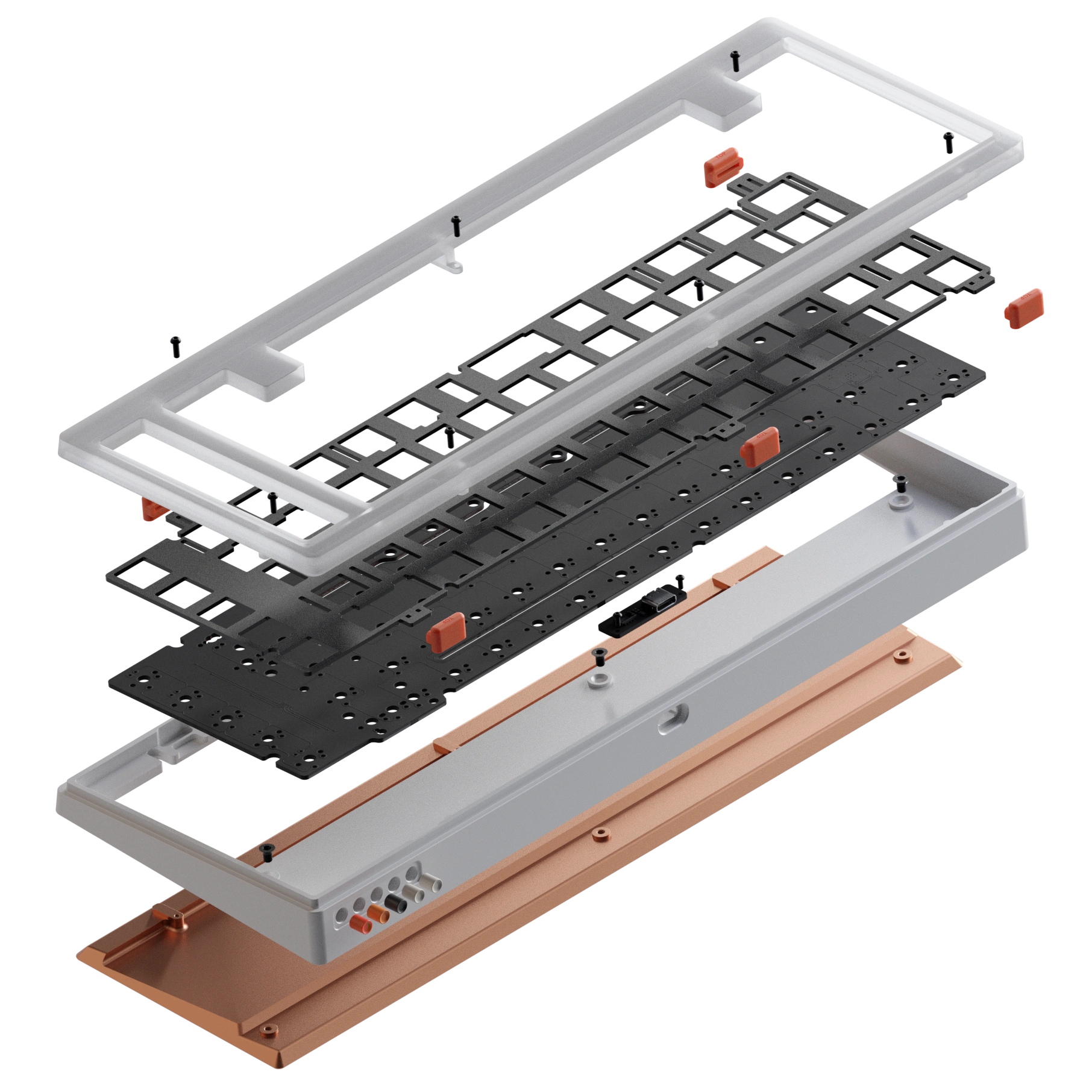

Top Case
Shown in Clear Polycarbonate.
Mounting System
Custom molded silicone "Sleeve" gaskets, available in multiple firmness's.
Switch Plate
Offered in Aluminum, Carbon Fiber & FR4.
PCB
Offered in either Hotswap or Solderable. Our pcb features flex-cuts and 6 through-hole UV LEDs.
Daughter Board
With ESD and Reverse Current Protection
Bottom Case
Features internal screws for a seamless look when assembled.
Nubbins
A modular badge system featuring colorful magnetic pegs; purpose-built for mixing and matching to accentuate your setup.
Weight
Sleek, recessed design, available in multiple materials and finishes.
Talk about your brand
Pair text with an image to focus on your chosen product, collection, or blog post.
Add details on availability, style, or even provide a review.
Design

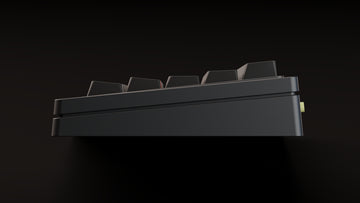

Minerva LX’s design language draws heavy inspiration from the works of Dieter Rams, embracing a balance of function and form. Subtle details, like the tapered accent lip around the keys and the T523-inspired Nubbin Badge, add to its refined aesthetic. The sloped front and back give the board a grounded, planted look, while the boldly accentuated seam between the top and bottom case adds a striking contrast.

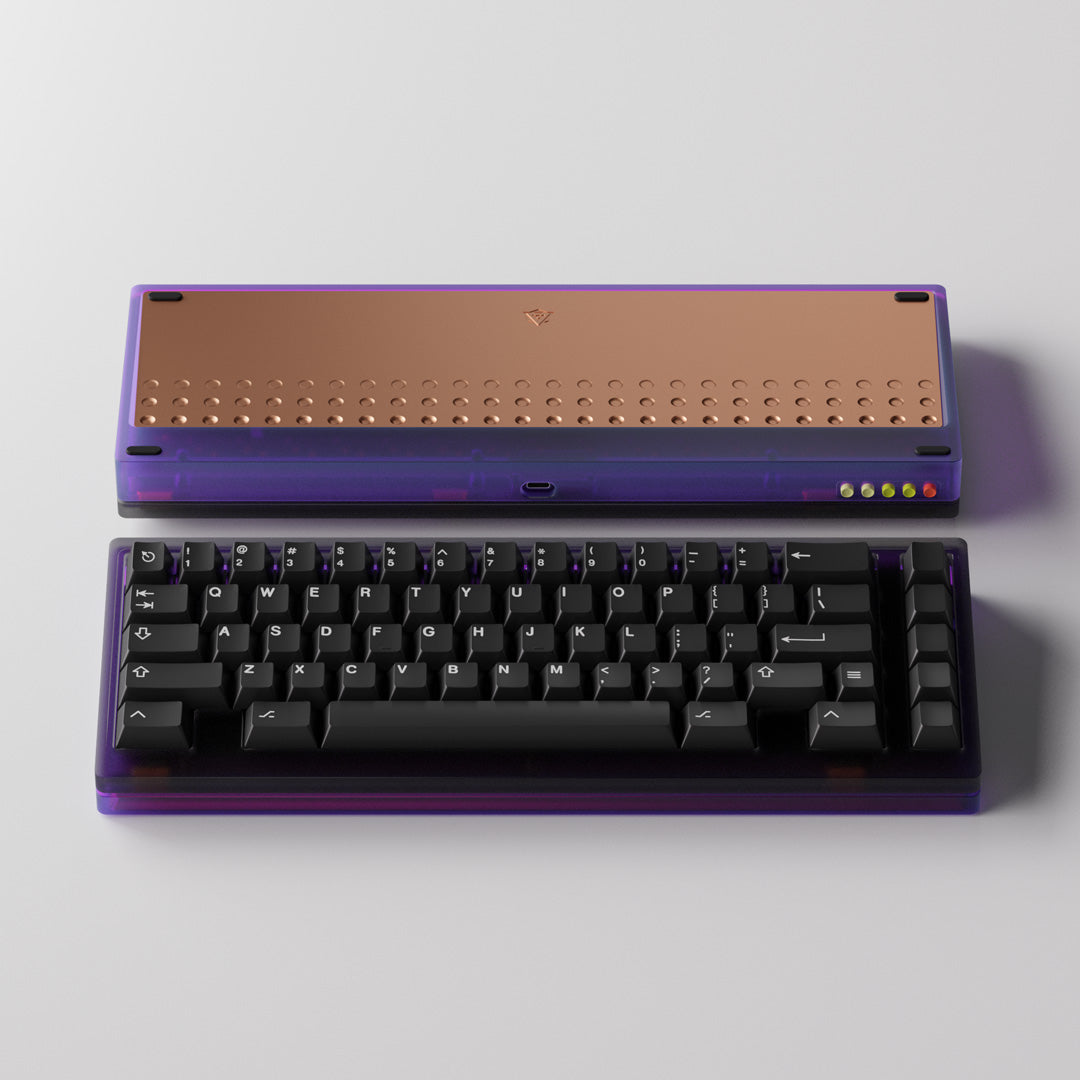

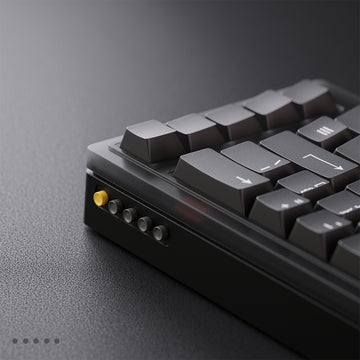

The backside of the board maintains our minimal approach with a center aligned USB-C connector and our “Nubbin Badge” aligned to the left. These magnetic pegs (or Nubbins, your choice) are our way of enabling you to easily customize your badge to fit your setup, your keysets, or your mood. The nubbins are resin cast in-house, and of course, you can expect us to release many options for you to choose from in the future.

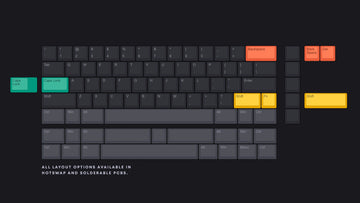

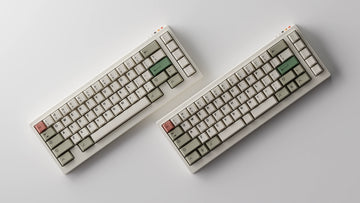

Minerva is available in two primary designs with multiple layout options. Your layout options will vary depending on which Top Case design you choose. (WK or WKL).
Backspace
- Full or Split
CasLock
- Standard or Stepped
Right Shift
- Full or Split
Bottom Row (WKL)
- 7u Spacebar
- Split Spacebar (3u - 1u - 3u)
Bottom Row (WK)
- 7u Spacebar
- Split Spacebar (3u - 1u - 3u)
- 6.25u Spacebar

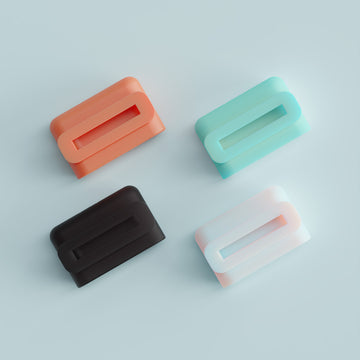

Mounting System

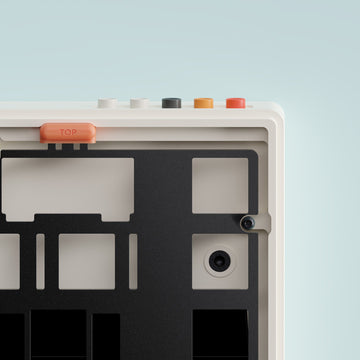

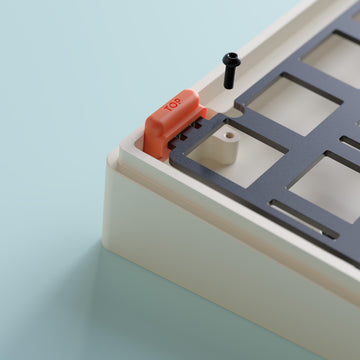

Minerva’s mounting system features five uniquely designed injection-molded silicone Sleeve-Gaskets, slotted between the top and bottom case. These gaskets absorb vibrations from the plate, preventing resonant frequencies from transferring through the board. The result is a truly isolated sound profile paired with natural flex, delivering a refined and satisfying typing experience.

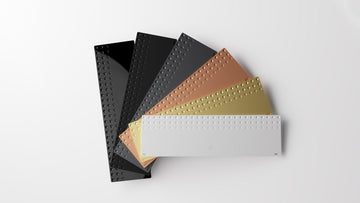

Weight

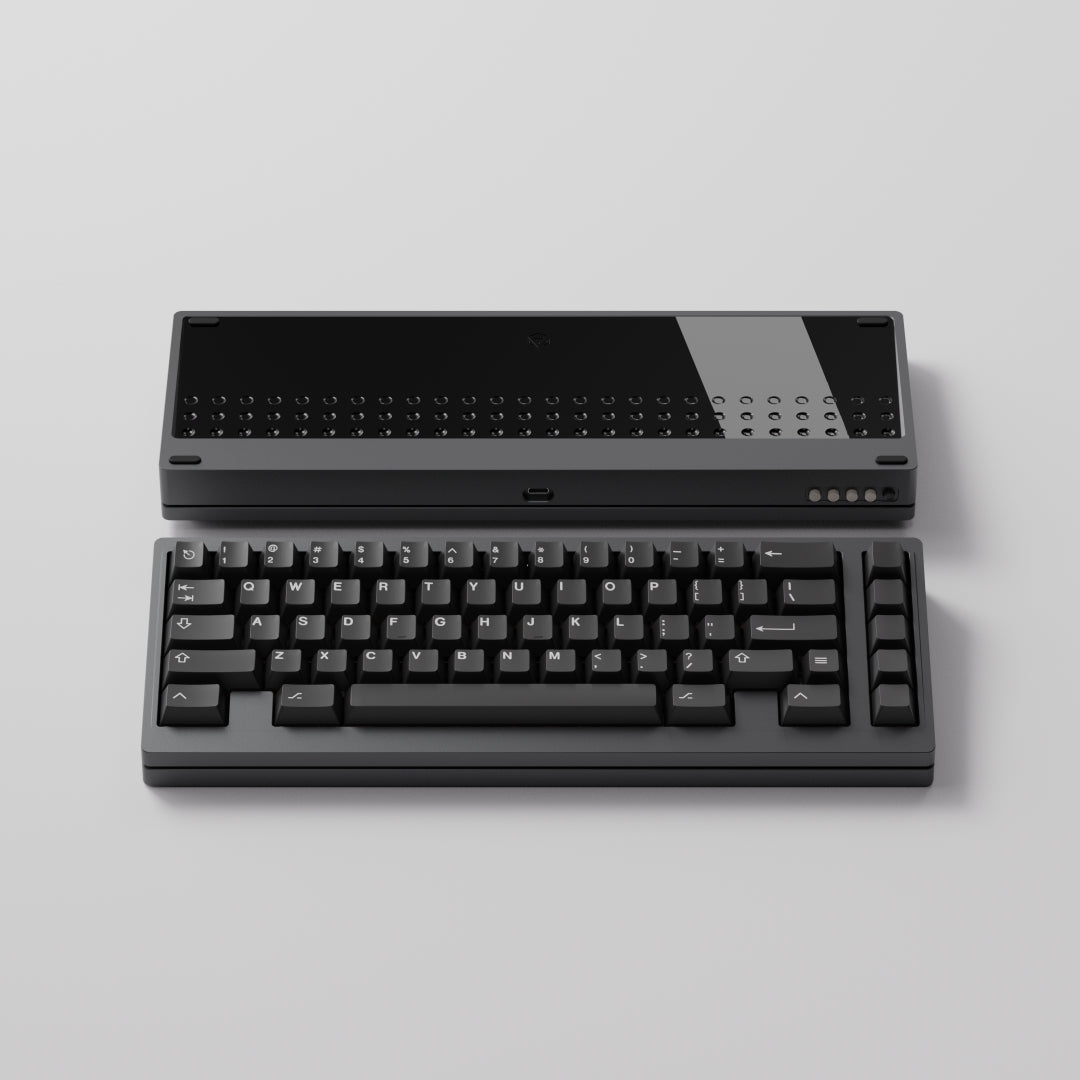

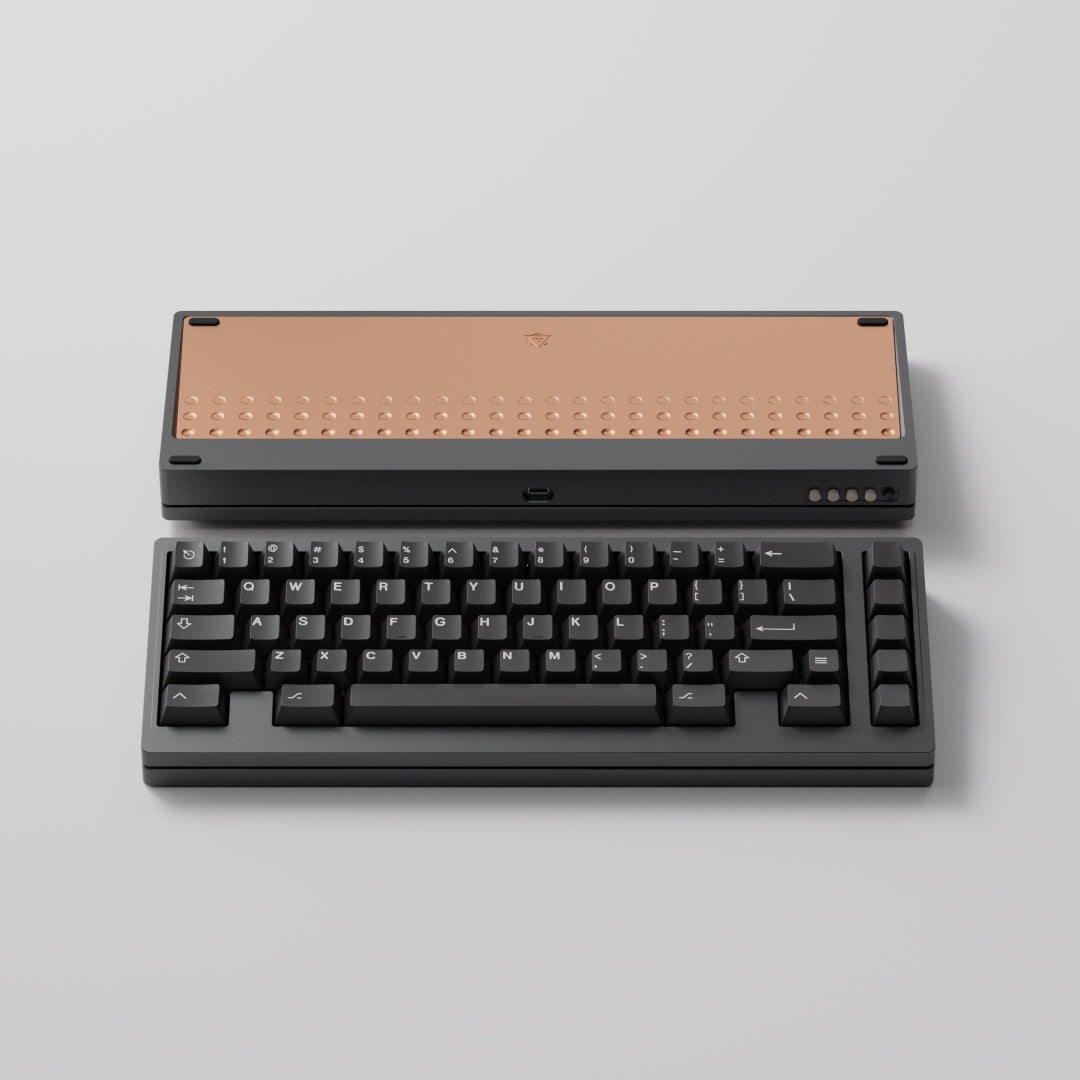

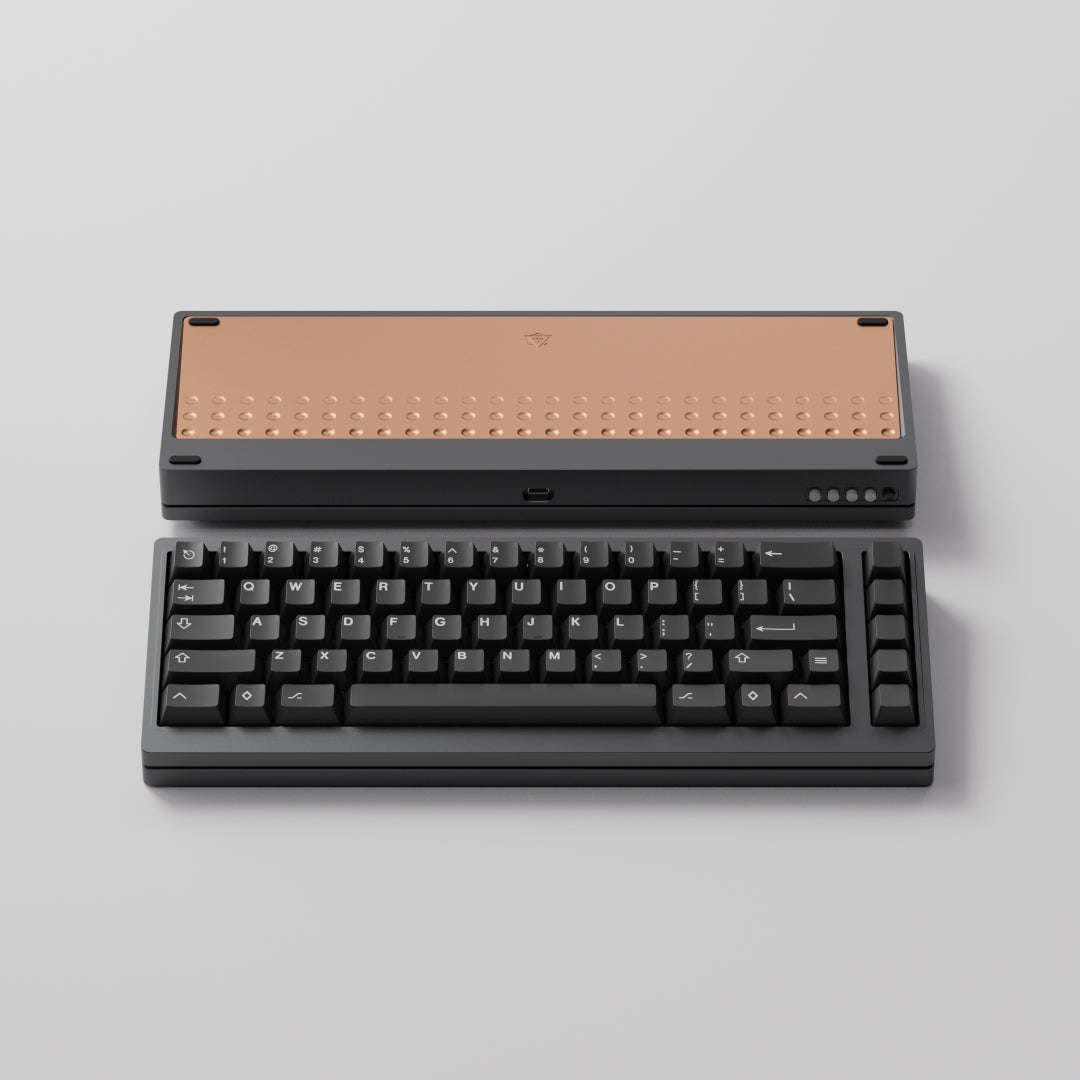

The recessed weight spans a large portion of the board’s underside, featuring a subtle nod to the Nubbin Badge design with its distinct dimpled surface. Available in a variety of finishes, each weight offers a unique aesthetic and feel:Weights are available in Raw Sandblasted Brass (which encourages a natural patina), Brass Black Mirror PVD, Brass Black PVD, Brass Dark Gray PVD, Copper w/ Anti-Tarnish and Aluminum E-White.

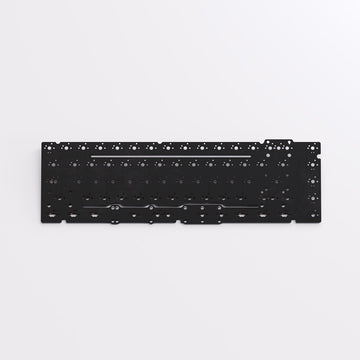

PCB & Daughter Board
The Minerva PCB is engineered for flexibility—both in layout and feel. Strategically placed flex cuts in high-traffic areas, such as the alphas, enhance typing dynamics. Choose between Hotswap or Solderable configurations to match your build preferences.
A unique feature of the Minerva PCB is its UV LED integration at the Escape key and macro columns, designed to illuminate UV-reactive artisan keycaps. The LEDs require through-switch soldering for installation and can be toggled on or off at your convenience.

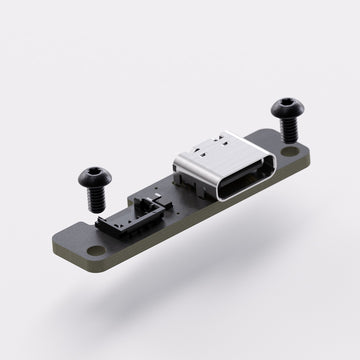

Built for seamless compatibility, the PCB supports QMK and VIA and connects via an EZMATE connector to a custom low-profile Daughter Board, featuring a USB-C port, ESD protection, and Reverse Current Protection for long-term reliability.

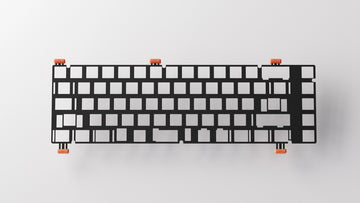

Plate
Our plate offers a subtle flexible feel across the board, enhanced by bridge-like contact points with our custom Sleeve-Gaskets. Available in FR4, Carbon Fiber, or Black Anodized Aluminum, each material provides a distinct typing experience.

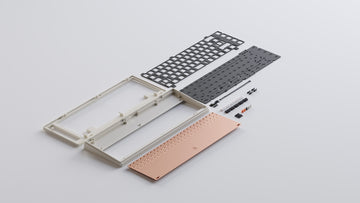

What's in the box?
Every Minerva ships in a thoughtfully packed box, complete with all essential components for assembly—just add your choice of stabilizers, switches, and keycaps.
- Top Case
- Bottom Case
- Plate
- PCB(s) & Daughter Board
- EZ Mate Connector Cable
- Weight
- Black - Hard (40A) Sleeves (5x)
- White - Soft (15A) Sleeves (5x)
- Silicone Press-Fit Feet (x4)
- Nubbin Badges (x5)
- M2X6MM Case Torx Screws (x8)
- M3X5MM Weight Torx Screws (x4)
- M2X4MM Daughter Board Torx Screws (x3)
- M3X5MM Weight Torx Screws (x4)
- L-Shaped Torx Key (x1)
Frequently Asked Questions
Q. What are the “Nubbins”? Are they functional buttons?
A. Nubbins are 5mm round resin pegs that magnetically attach to Minerva. They serve no functional purpose outside of an additional layer of aesthetic customizability.
Q. What layout limitations are there with Hotswap vs Solderable PCB?
A. None. Both PCB options share the same exact layout possibilities. Your layout can only be limited based on if you choose WK or WKL top.
Q. Will I be able to get different durometer Silicone-Sleeves?
A. Sleeves are currently available in Hard(40A) and Soft(15A) variants.
